Question 66 - Problems - Chapter 1

Problem:

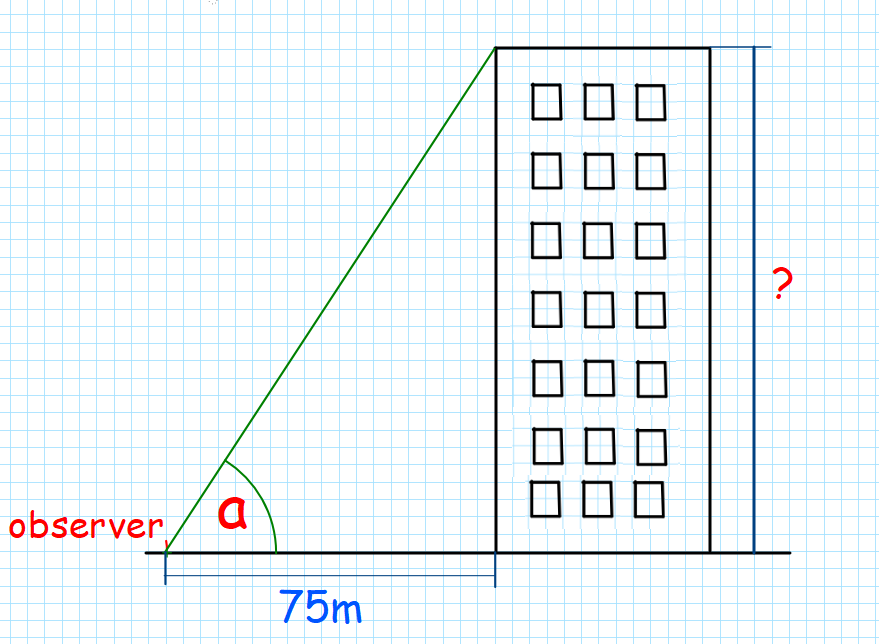

You want to estimate the height of a sky-scraper from the ground. To do so, you walk 150 steps (75m) away from the vertical wall, and, usig a protractor, measure an angle of 78° that the line of sight to the top of the skyscraper makes with the horizontal.

Pollished crystal-grid

Question:

How tall is the skyscraper?

How many significant figures are in your result?

Solution:

Since the atoms are spherical we can use the ratio without having to know the dimensions.

$$ \textrm{Height}=\textrm{Distance}*\tan \left(\widehat{a}\right)) $$

In [1]:
# Calculations
import numpy as np
from astropy import units as u

Distance = 75
a = 78 * u.degree
Height = Distance * np.tan(a)
print(f'The calculated height of the building is {Height:.0f} m')
The calculated height of the building is 353 m

We can only use two significant figures so the estimated height is $\text{ 350 m }(\pm10m)$
