The traject from my QTH to the Ghent relais ON0TVO

Description

Frequencie 10.180 GHz

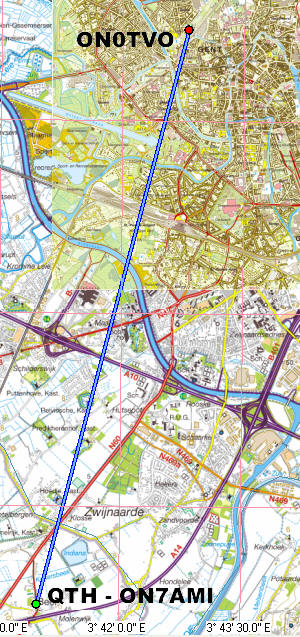

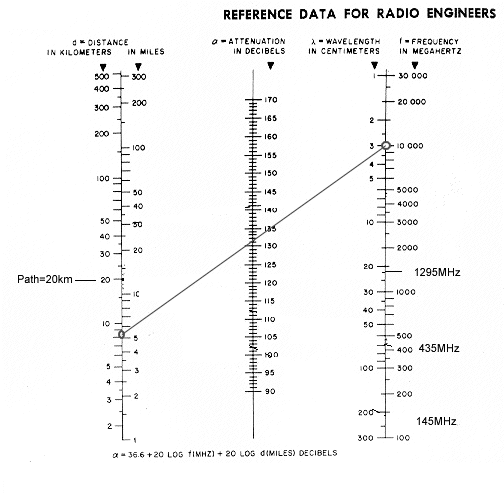

The terrain:

Distance from point to point
8571.66 m
True distance
8572.01 m
Minimum altitude
8 m
Maximum altitude
10 m
difference in altitude
-1 m

The installations:

The relay station ON0TVO
Location JO11UB
N 51°03'36”,0 – E 3°42'41”,0
Antenna altitude 65 m ASL
Antenna gain 16 db
Output power 6 Watt = 37.8 dbm



The QTH of ON7AMI
Antenna altitude 7m

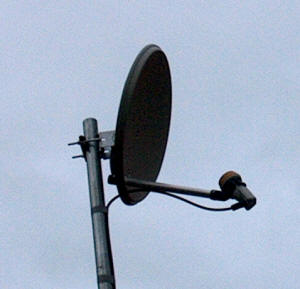

Antenna 40 cm dish, gain: 30db
1st conversion LNB with gain 50db

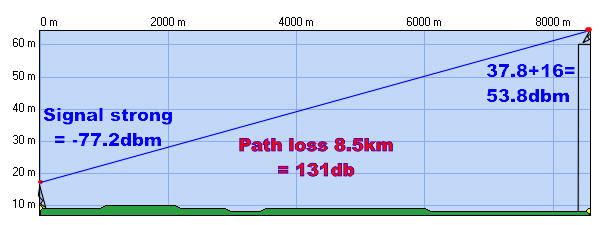

Terrain Cut
